Network lab report

ARP, Ping, and Encapsulation

A physical networking lab connecting raw bytes, Ethernet framing, ARP resolution, and router packet interpretation.

Objective

Understand what actually crosses the wire.

This physical lab traces how a host resolves a same-subnet IP address into a destination MAC address, how Ethernet broadcasts carry a specific ARP question, and how Wireshark decodes protocol fields from raw bytes.

ARP lab topology
Management subnet used to observe local ARP and ICMP behavior.

Key finding

An ARP request is a specific Layer 3 identity question carried in a Layer 2 broadcast frame. The Ethernet destination is ff:ff:ff:ff:ff:ff because the destination MAC is unknown, while the ARP payload asks for a specific target IP.

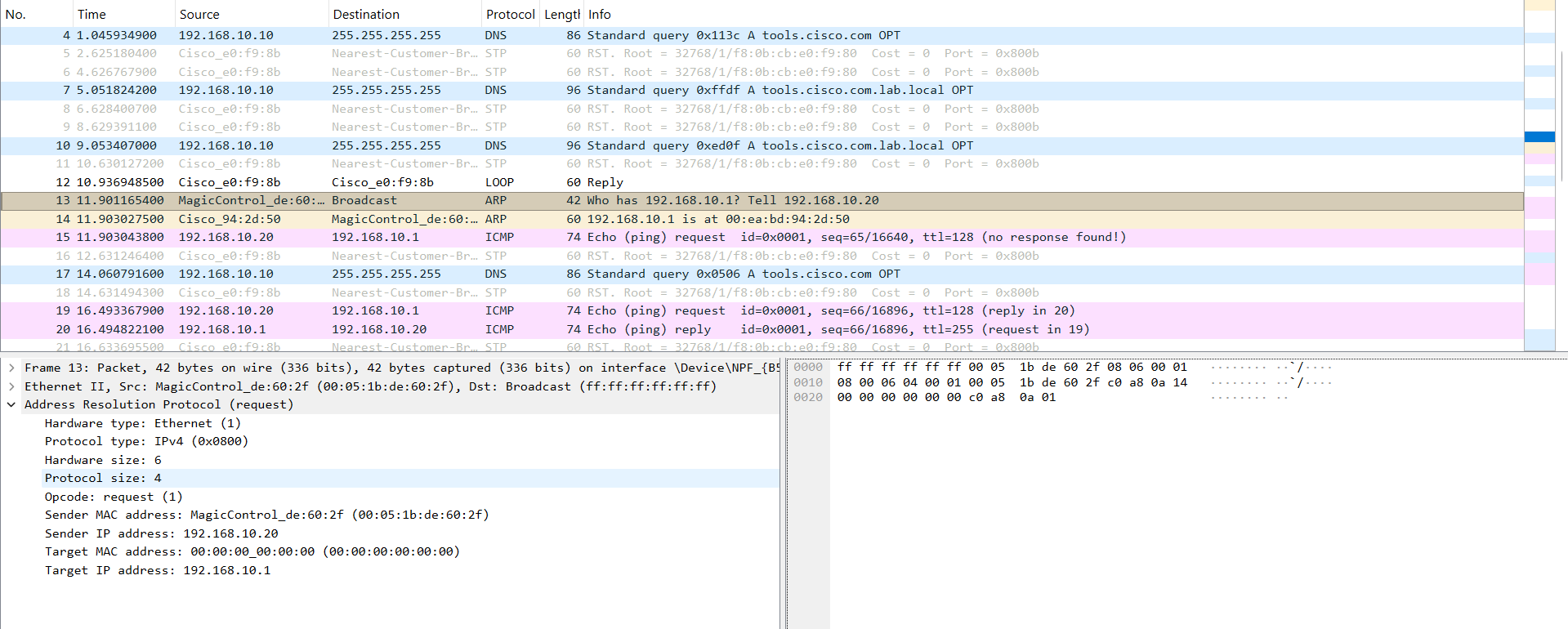

Wireshark ARP request capture
ARP request decoded in Wireshark: broadcast Ethernet destination with a specific target IP.

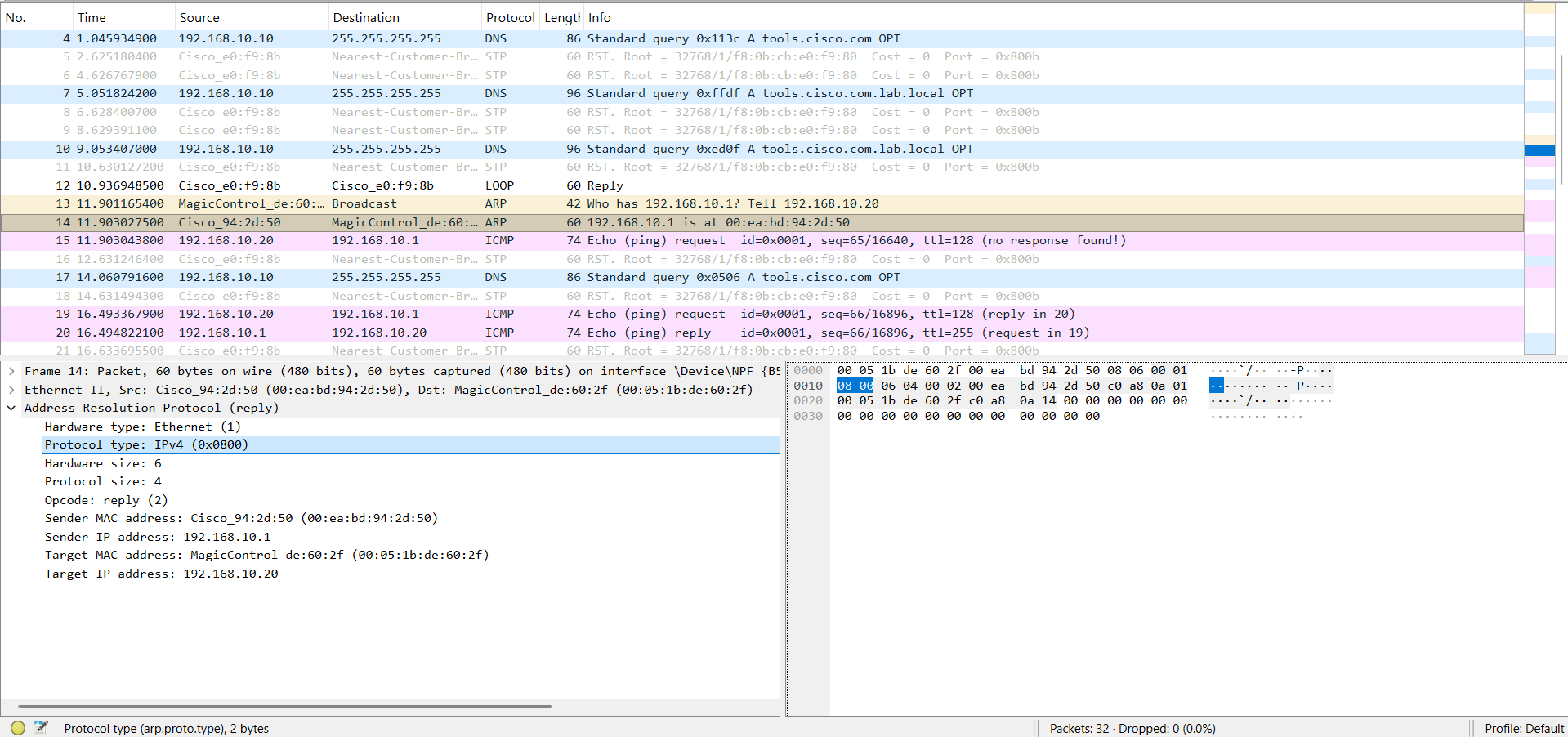

Wireshark ARP reply capture
ARP reply decoded in Wireshark: unicast response carrying the resolved MAC address.

Operational interpretation

  • Layer 2 forwarding depends on destination MAC addresses.
  • ARP bridges Layer 3 identity and Layer 2 local delivery.
  • Wireshark translates raw structured bytes into human-readable protocol fields.
  • Routers receive frames, validate Layer 2 delivery, decapsulate, inspect Layer 3 headers, make a route decision, and re-encapsulate for the next hop.
