Network lab report

SNMP Monitoring: v2c, v3, and Counter Analysis

An EVE-NG lab enabling SNMP on three routers and validating the full monitoring chain with Paessler SNMP Tester: authenticated polling, traffic counters, and a raw ifTable walk.

Objective

Prove the complete SNMP monitoring chain, from agent to raw log.

A three-router EVE-NG topology (EIGRP source → redistribution boundary → OSPF verifier) gets SNMP v2c and v3 enabled. A Windows management station at 192.168.1.89 then polls the routers with Paessler SNMP Tester, and the raw request/response log is decoded OID by OID.

EVE-NG topology with R2, R1, and Branch routers
EVE-NG topology: R2 (EIGRP 100 source) → R1 (ASR redistribute) → Branch (OSPF 100 verifier), with Branch e0/2 bridged to the LAN where the monitoring host lives.

Layer 3 addressing

R1Ethernet0/0 = 203.0.113.6, Ethernet0/1 = 203.0.113.13, Loopback0 = 3.3.3.3
R2Ethernet0/0 = 203.0.113.14, Ethernet0/1 = 203.0.113.10, Loopback0 = 4.4.4.4
BranchEthernet0/0 = 203.0.113.5, Ethernet0/1 = 203.0.113.1, Ethernet0/2 = 192.168.1.88 (LAN), Loopback0 = 1.1.1.1
MonitorWindows host on 192.168.1.89/24 — polls R1 at 203.0.113.6 through Branch's LAN bridge

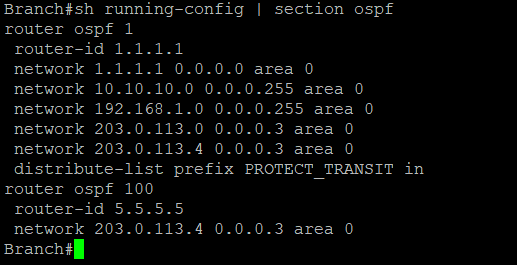

Branch router OSPF configuration
Branch runs two OSPF processes with a distribute-list protecting transit prefixes, verifying routes redistributed from the EIGRP side.

Agent configuration

Read-only community, trap host, and trap enablement

All three routers share the same baseline: a read-only community and a v2c trap host pointed at the management station. R2 additionally enables a broad trap set covering link up/down, authentication failures, EIGRP and OSPF events.

R1 SNMP configuration
R1: snmp-server community SHUAIB_SNMP_LAB RO plus snmp-server host 192.168.1.89 version 2c — identical on R2 and Branch.

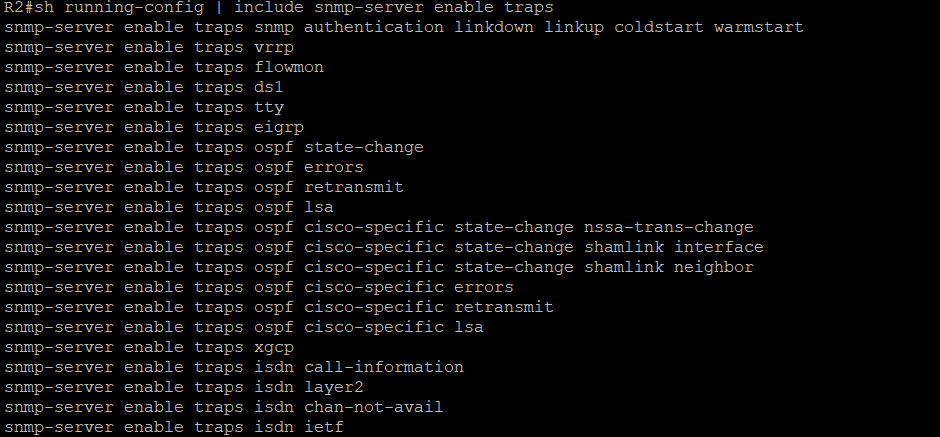

R2 enabled SNMP traps
R2 trap enablement: snmp, vrrp, flowmon, dsl, tty, eigrp, full OSPF family, xgcp, and isdn traps.

Test 1

SNMPv3 uptime poll — authenticated and encrypted

The tester polls R1 with SNMPv3 (MD5 authentication, DES privacy). The agent returns a real decrypted uptime of 2329999 timeticks (≈ 6 h 28 m), proving the v3 security chain works end to end. A second probe of the classic sysUpTime.0 instance answers noSuchObject — an agent-side MIB quirk, not a connectivity failure.

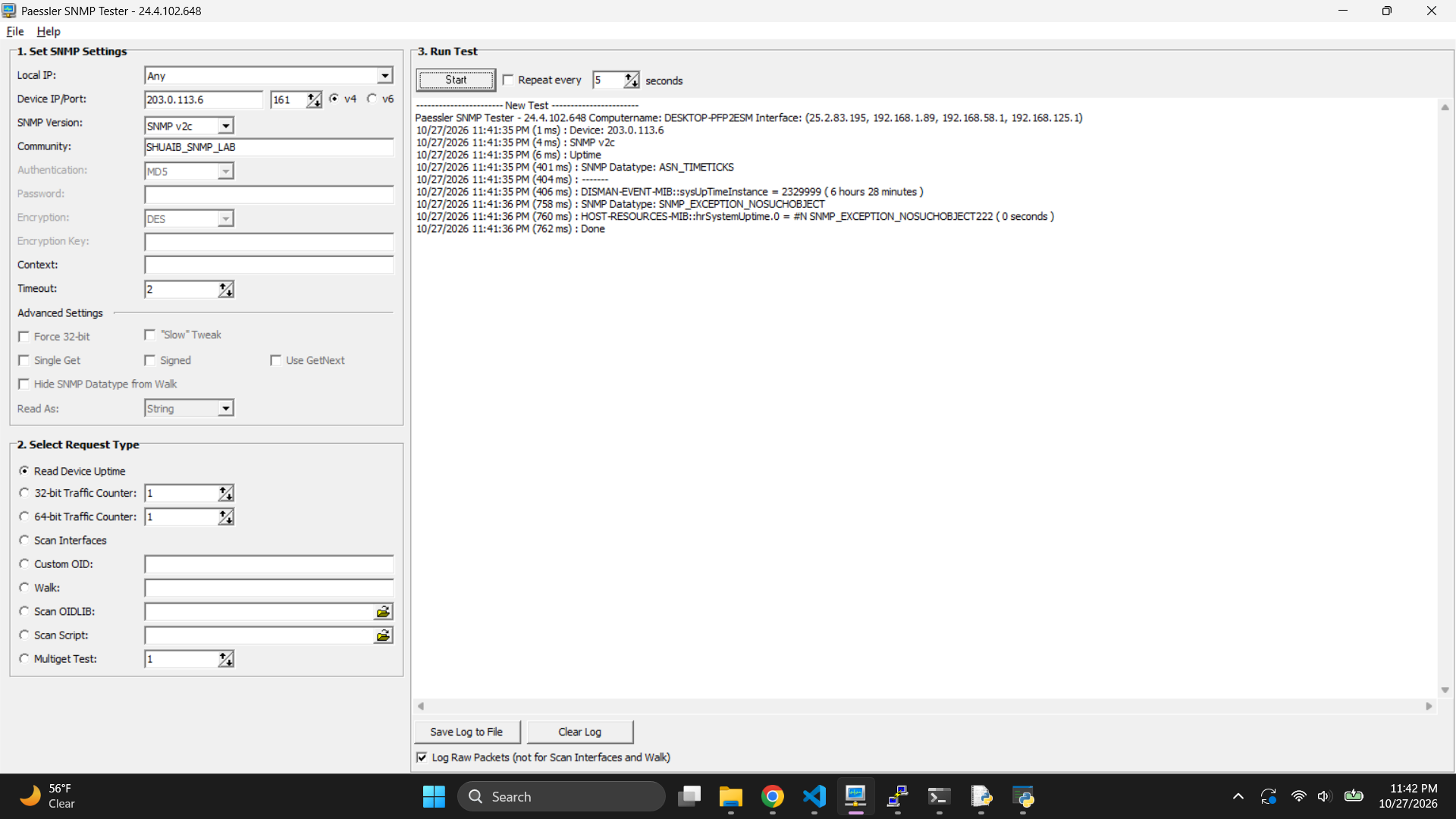

SNMPv3 uptime test result
SNMPv3 test: handshake in 4 ms, real uptime returned, then the expected noSuchObject exception on the second sysUpTime probe.

Tests 2 and 3

32-bit and 64-bit traffic counters

Interface byte counters are cumulative odometers, not rates: a monitor computes bandwidth by polling twice and dividing the delta by time. The 32-bit counters (ifInOctets/ifOutOctets) wrap at ~4.29 GB; the 64-bit IF-MIB counters remove that ceiling.

32-bit testIn: 885038, Out: 1058793 (ASN_COUNTER)
64-bit testIn: 889056, Out: 1070833 (ASN_COUNTER64) — values still climbing between tests

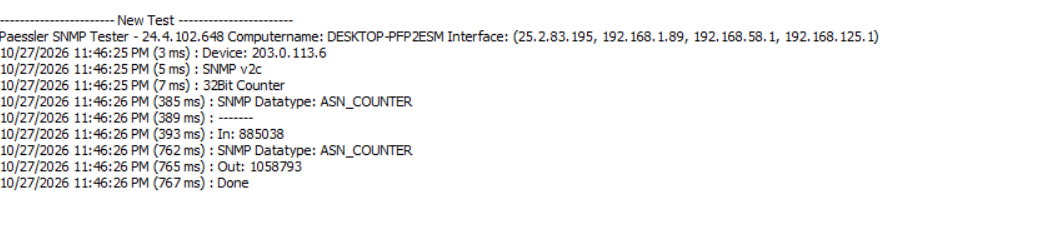

32-bit counter test result
32-bit counter test over v2c: both directions return live ASN_COUNTER values.

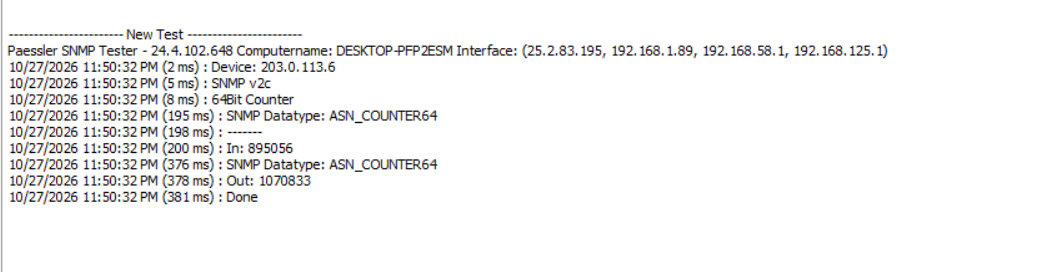

64-bit counter test result
64-bit counter test: the device supports ifHCInOctets/ifHCOutOctets, so production monitoring can avoid wrap-around entirely.

Log analysis

Decoding the interface-scan log

The full scan walks R1's MIB-II and IF-MIB tables: sysUpTime, ifNumber (8 interfaces), ifName via GETBULK, 64-bit octet counters, ifOperStatus, and ifAlias. All ~40 operations return Status=0 — zero timeouts.

  • Interface descriptions ("Q1 R1 to Branch", "Q1 R1 to R2") surface through ifAlias, mapping ports to topology in any NMS.
  • Null0 has no 64-bit counters (NOSUCHINSTANCE), so the tester correctly falls back to 32-bit for that virtual interface.
  • GETBULK walking is a v2c capability impossible in v1 — a practical reason monitors prefer v2c for table walks.
  • Counter values grow consistently between the standalone tests and the scan minutes later, confirming live counters.

Outcome

SNMPv2c pollingWorking — community read-only, zero request errors
SNMPv3 MD5 + DESWorking — authenticated, encrypted read
TrapsConfigured toward 192.168.1.89
Interface discovery8/8 interfaces enumerated with counters and aliases
